Description

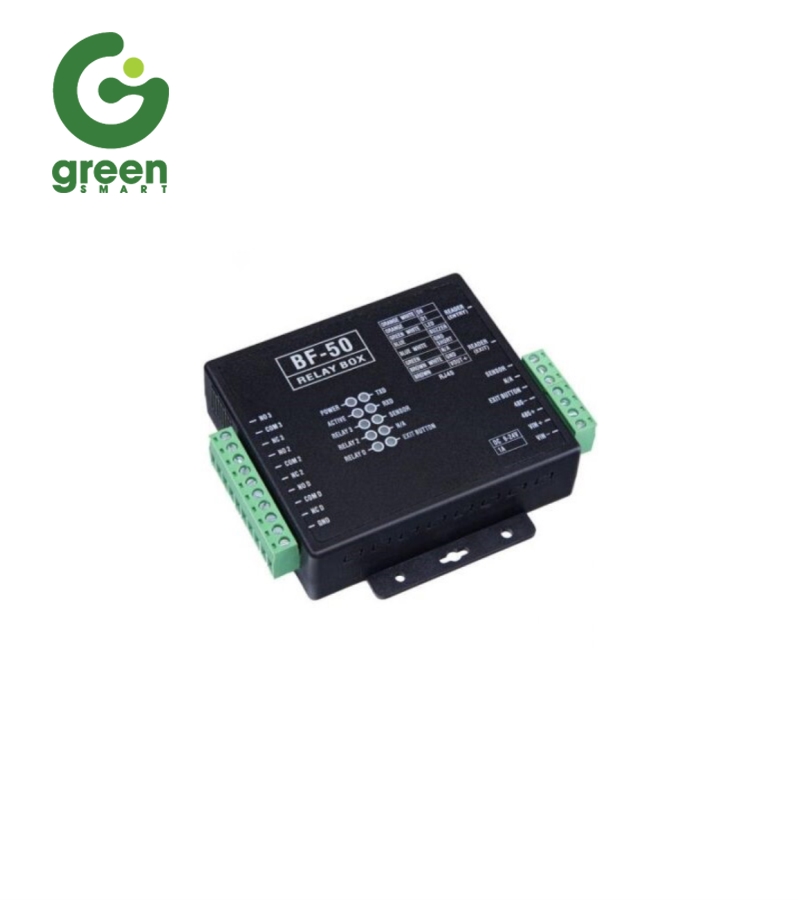

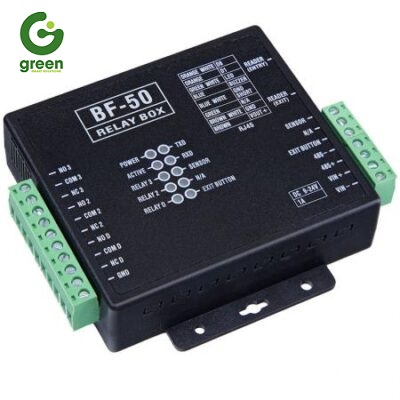

The BF-50 security door controller is also known as the door communication device. Used in the effective door access control system, the BF-50 operates based on the RS485 communication control relay to provide a high level of security. In emergency mode, when the controller is disconnected, the exit button can still function.
With a compact design, especially with many features suitable for current door control lines. The BF-50 security door controller deserves to be included in security control systems.
OUTSTANDING FEATURES
-
Compatible with Biosense / BF-630 / BF-830 / SEMAC / WEBPASS / WG Reader, you can use BF-50 for single-door or multi-door control structure.
-
Connect with the following Chiyu models:
– Connect with Standalone controller except CSS-R11 (Option)
– Connect with Semac S2 unit: up to 8 BF-50 units to control 8 doors (Option)
– Connect with Semac S3V3 unit to stratify elevators (Option)
-
To detect the door sensor is short-circuited or open-circuited.
-
Built-in Watch-dog (Watch Dog).
-
2 Wiegand inputs (indoor / outdoor), users can choose any brand of Wiegand reader to use.
-
Integrated design: integrated with exit button, door sensor and Wiegand reader. It is easy to install and also saves operating costs. RS485 communication control relay to provide high security level. In emergency mode, when the controller is disconnected, the exit button can still function.

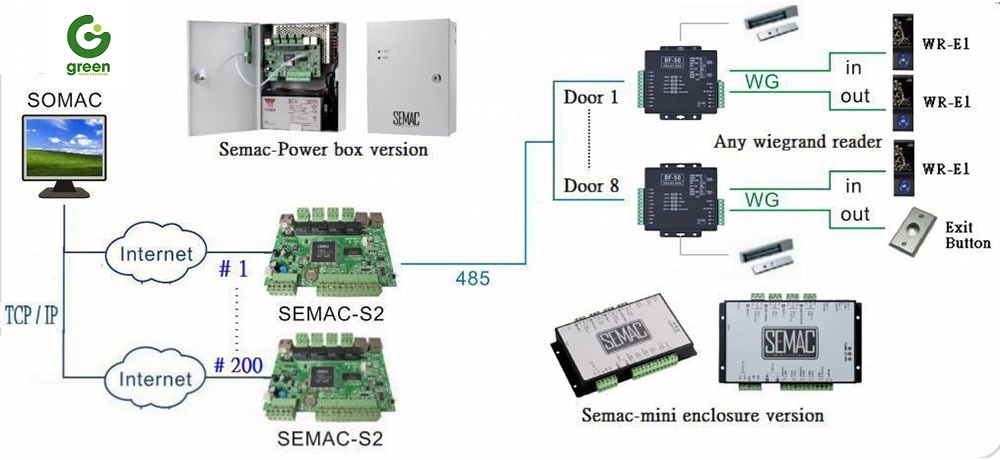

SCHEMATIC DIAGRAM

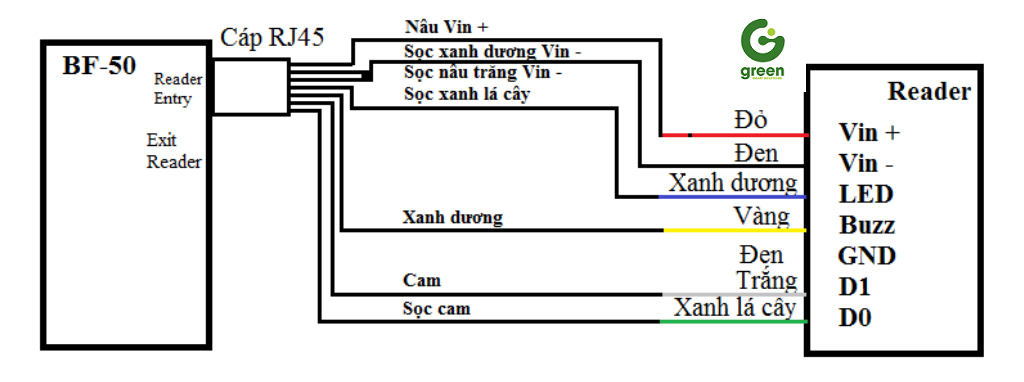

WIRING DIAGRAM OF ENHANCED SECURITY CONTROLLER WITH CARD READER
In case the power supply of the BF-50 security controller and the reader power supply are different, the 2 Vin wires of the 2 sources are connected together.
SPECIFICATIONS
|
Product code
|
BF-50
|
|
Origin
|
Taiwan
|
|
Wiegand Input
|
2 (WG26/ 34 Auto detect).
|
|
Communication interface
|
RS-485 (1,000m)
|
|
Watch Dog
|
Interception system
|
|
Door Relay (Relay D)
|
1 (3A / 30VDC)
|
|
Alarm Relay
|
2 (3A / 30VDC)
|
|
LED light for reader
|
2
|
|
Maximum distance for Wiegand
|
80m
|
|
Rated power
|
9 ~ 24 V DC / 200mA ~ 400mA
|
|
Temperature/Humidity
|
0°C ~ 55°C/ 5% ~ 80% rh
|
|
Temperature/Humidity
|
106 x 100 x 26,5 mm/ 140g
|
